HROG-10

PHASE AND FREQUENCY OFFSET GENERATOR

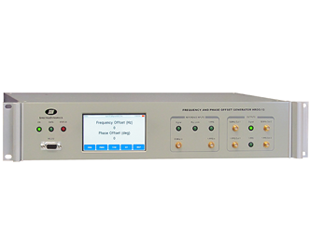

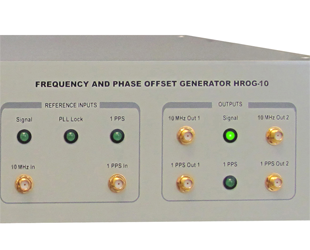

The HROG-10 is a high-resolution phase and frequency offset generator. The phase and frequency of the output signals are adjustable with respect to a 10 MHz user supplied reference. The output phase resolution of the generator is 2π/232 radians or an output time step resolution of 0.024 fs. The output frequency resolution is 5 x 10-19. Both phase and frequency steps are phase continuous. The instrument provides two sine-wave outputs and two pulse outputs. The sine-wave outputs are buffered to provide greater than 80 dB of port-to-port and 100 dB of reverse isolation. The outputs are at a level of +13 dBm. The pulse outputs are derived from the sine-wave outputs by dividing by a factor of 10.0E6. The pulse outputs can be synchronized to an external reference pulse to within 100 ns. All instrument functions are displayed and controlled via the front panel LCD display and keypad. Remote control of the instrument is possible through RS-232 communications.

  • Features
  • Applications
  • Specifications
  • Options
  • High frequency resolution: 5 E-19
  • High time resolution: 0.024 fs
  • Low harmonic distortion: -45 dBc
  • Low phase noise (LN Option @1 kHz) : -168 dBc/Hz
  • High isolation: > 80 dB
  • Atomic frequency standards
  • Clock synchronization
  • Time-scales
  • Clock steering
  • Frequency offset generation
Low Noise Option Specifications:

PARAMETER

CONDITIONS

MIN

TYP

MAX

UNITS

Phase Resolution



-

2π / 232

-

radians

Phase Offset Range

Cumulative

-

infinite

-

-

Time Offset Resolution

10 MHz external reference

-

0.024

-

fs

Frequency Resolution



-

5 E-19

-

-

Frequency Tuning Range



-

± 2 E-7

-

-

Mechanical Tuning Range



-

± 1 E-6

-

-

Internal Oscillator Aging

After 30 days of operation

-

2 E-10

-

per day

10 MHz Output Level

50 Ω Load

10

13

15

dBm

1 PPS Output Level

50 Ω Load

3.7

4.2

5

V

1 PPS Rise Time

50 Ω Load

-

1.4

2

ns

1 PPS Fall Time

50 Ω Load

-

1

2

ns

Output Isolation

Channel to channel

75

80

-

dB



Reverse

80

100

-



Phase Noise L(f)

1 Hz

-

-131

-127

dBc/Hz

(Residual)

10 Hz

-

-140

-137





100 Hz

-

-160

-158





1 kHz

-

-168

-167





>10 kHz

-

-168

-167



Allan Deviation σy(τ)

Δf = 1.0 E-12







 -



1 s

-

4 E-14

5 E-14





10 s

-

5 E-15

7 E-15





100 s

-

2 E-15

3 E-15



Allan Deviation σy(τ)

Δf = 0







-



1 s

-

4 E-14

5 E-14





10 s

-

5 E-15

7 E-15





100 s

-

6 E-16

8 E-16





1000 s

-

1 E-16

2 E-16



Spurious



-

-110

-100

dBc

Harmonics



-

-45

-40

dBc

Part Number Low Noise Option AC Operation +24 VDC Operation -48 VDC Operation
HROG-10√
HROG-10-DC√√
HROG-10-DC(-48V)√√
HROG-10-LN√√
HROG-10-LN-DC√√√
